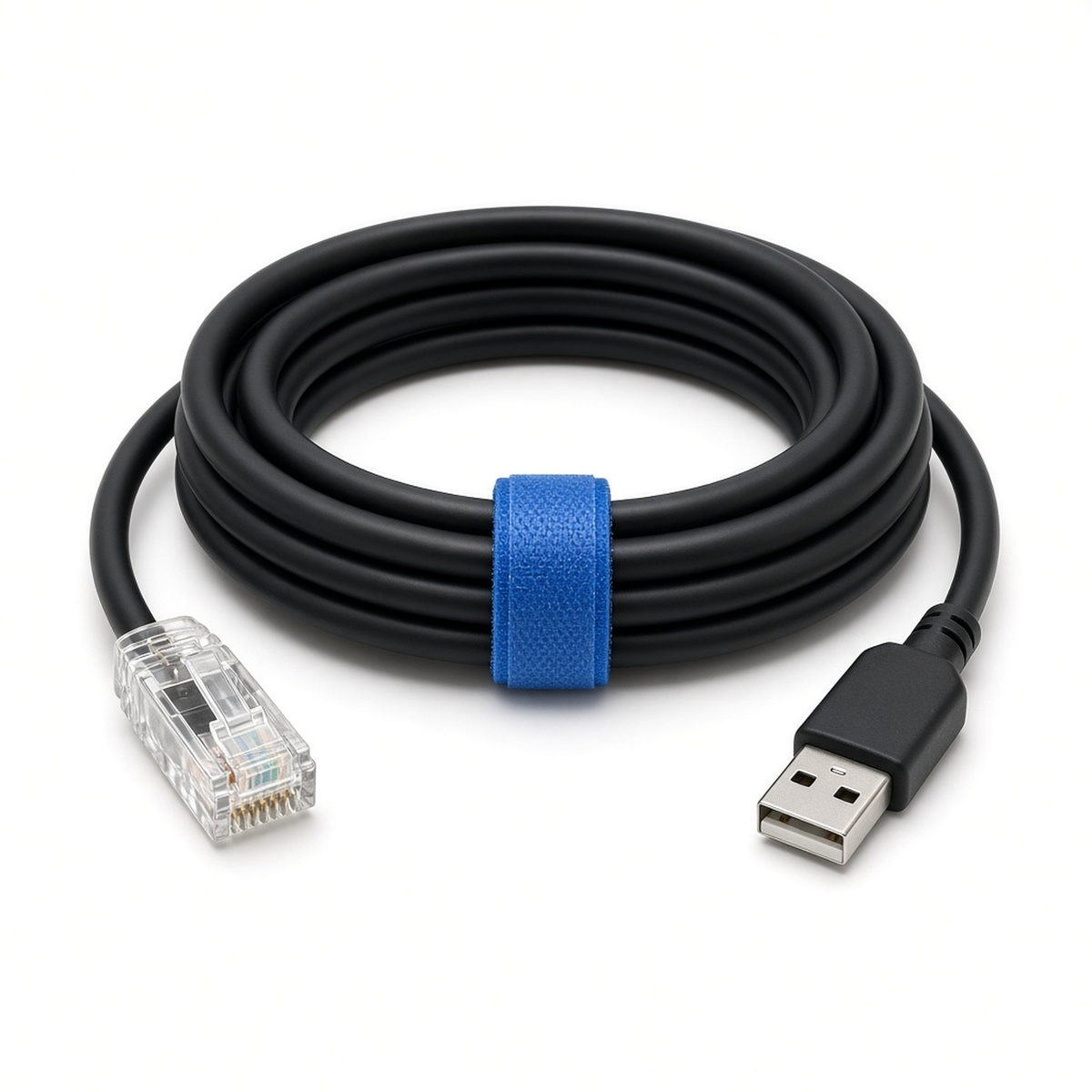

Solax X1/X3 Hybrid RS485 USB Cable

Read live data from your Solax hybrid inverter locally with Home Assistant, ESPHome or your own software. This lead runs from the inverter's RJ45 COM port to a USB RS485 adapter.

• Should fit Solax X1 and X3 Hybrid G4 inverters with an RJ45 COM port
• Wired to pin 4 (RS485 A) and pin 5 (RS485 B) only
• Pin 3 on the COM port carries about +13V. It is deliberately left unconnected in this lead
• Solax defaults to 19200 baud, 8N1, Modbus address 1. Check the setting on your inverter's menu
• The COM port is not Ethernet. Never plug it into a network switch

Brand names are trademarks of their respective owners and are used only to describe compatibility. InverterMan is not affiliated with or endorsed by any manufacturer. Check your inverter manual for the port and pin layout before connecting, and isolate the inverter before opening any cover. Ask us if unsure.
