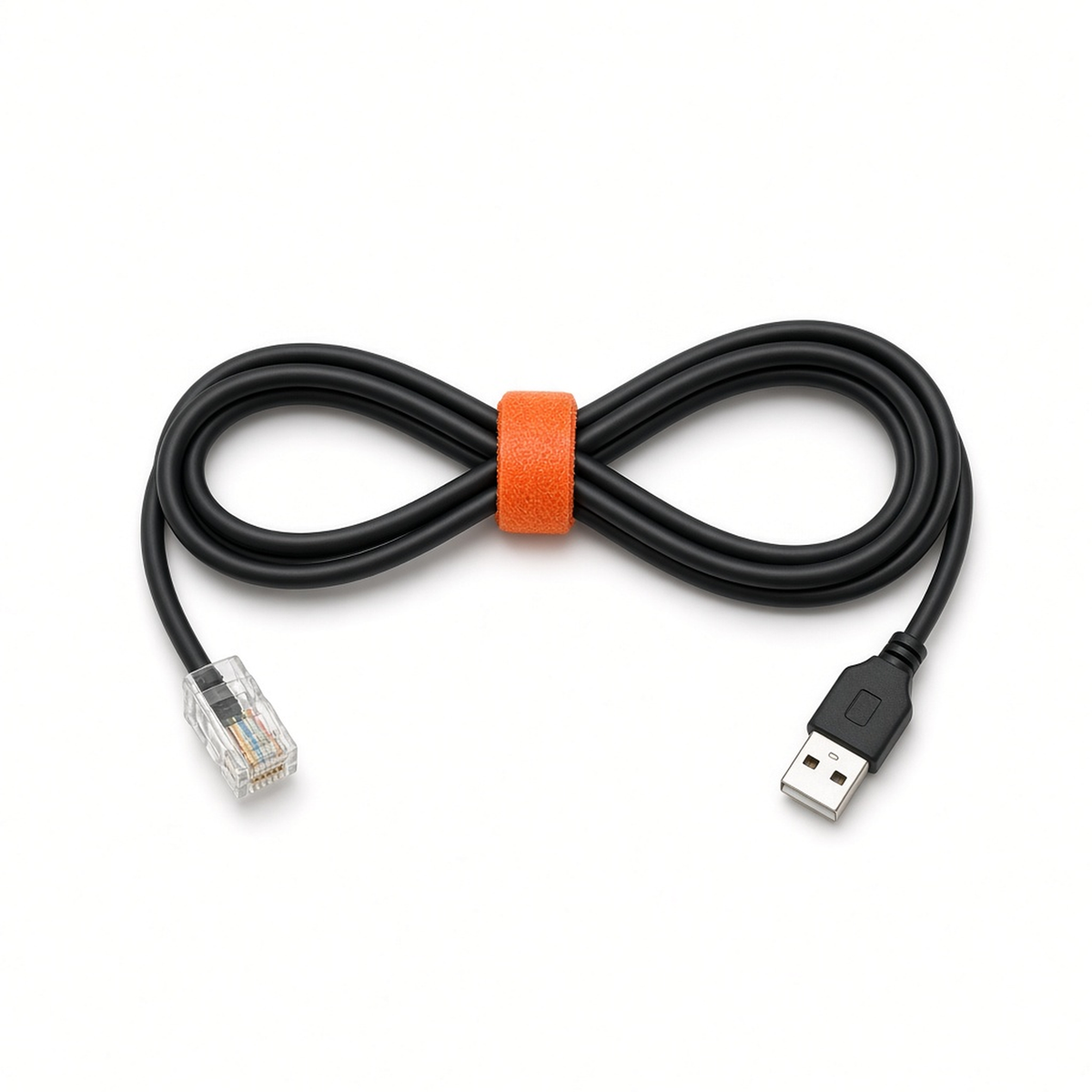

SRNE RS485 USB Cable

Connect your SRNE hybrid or off-grid inverter to Home Assistant, ESPHome or your own software over a simple wired link.

• Should fit SRNE inverters with an RJ45 RS485 port (for example HF, HESP and ASP families)
• Wired to pin 7 (RS485 A), pin 8 (RS485 B) and pin 2 (ground)
• Pin 1 on this port supplies 5V. It is deliberately left unconnected in this lead
• Modbus RTU at 9600 baud, 8N1, address 1 by default

Brand names are trademarks of their respective owners and are used only to describe compatibility. InverterMan is not affiliated with or endorsed by any manufacturer. Check your inverter manual for the port and pin layout before connecting, and isolate the inverter before opening any cover. Ask us if unsure.
