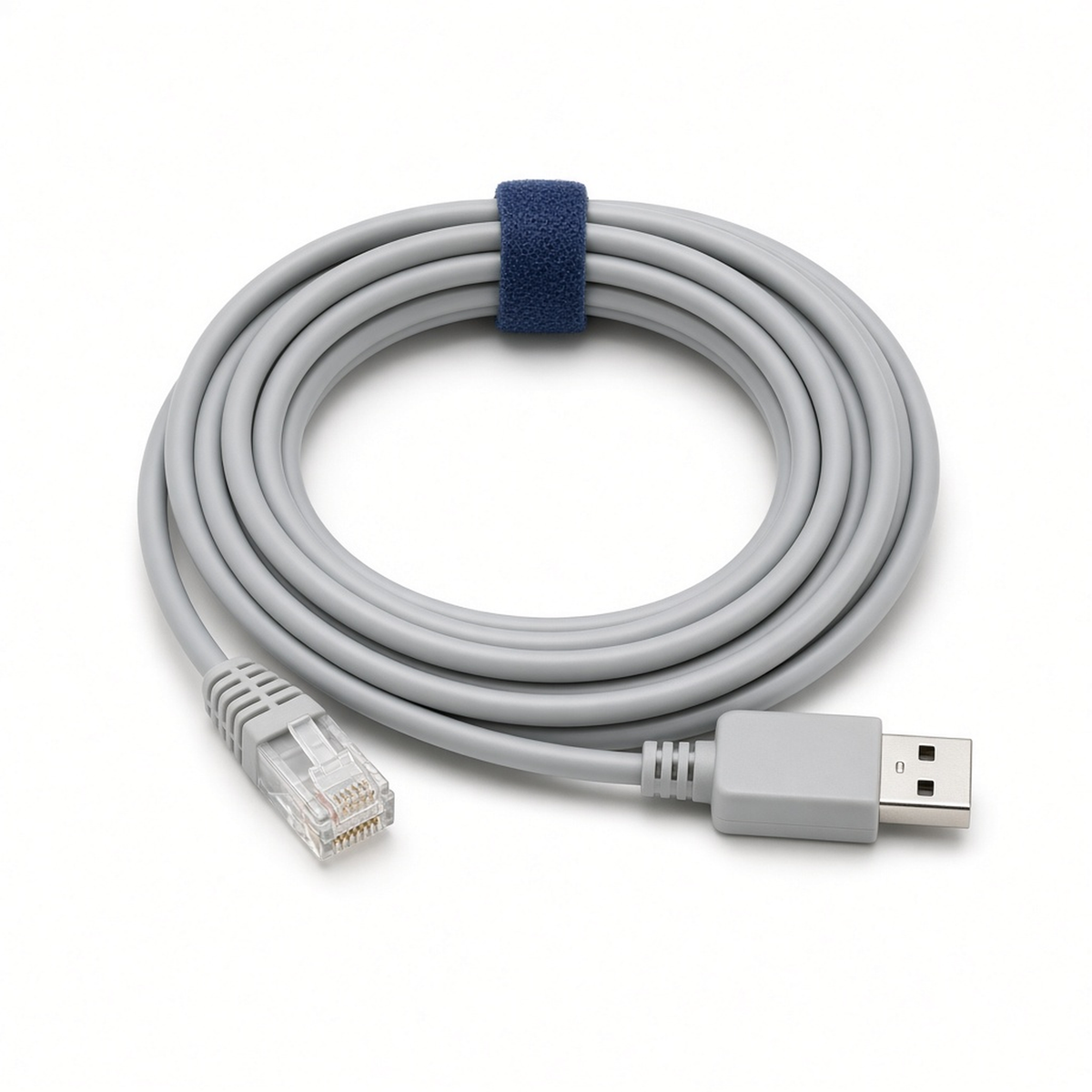

Pylontech Battery Console Cable (USB)

A console lead for the RS232 console port on Pylontech batteries. Read cell voltages, temperatures and state of charge straight from the battery using a USB-RS232 adapter. This is an RS232 lead, not RS485.

• Should fit Pylontech US2000C/US3000C/US5000 style batteries with an RJ45 console port
• Wired for the console pins: 3 = TX, 6 = RX, 8 = GND (wake-up pins 4/5 left unconnected)
• Console speed 115200 baud, 8N1
• USB-RS232 end (RS232 levels, not a USB-RS485 adapter)
• Works with open-source monitoring tools

Note: this is not for the battery's RS485/CAN port. On that port RS485 sits on pins 7 (A) and 8 (B).

Older non-C US2000 units use a smaller RJ11/RJ14 console socket and are not covered by this lead. Check your battery manual before connecting. Ask us if unsure.
